Stretch hooders

Stretch hooding advantages:

  • Maximum pallet stability with an up to date stretch hood system.
  • Optimal weather protection with watertight pallet packaging. Suitable for outside storage.
  • Easy access to all moving parts at floor level or on balcony for easy maintenance and inspection.
  • Solid construction and low overall height.
  • Horizontal and vertical stretching of film results in an excellent load stability and reduced foil / stretch film costs.
  • The hood can be pulled down to the bottom edge of a pallet, to secure the load/stack to the pallet.
  • The packaging machine is suited for different foil / stretch film rolls. The machine-settings will change automatically to the desired roll.



Stretch hooder L

Technical specifications:
Pallet dimensions: 600 x 800 (Euro) - 1.600 x 1.200mm (industry)
Load height: min. 400mm - max. 3.500mm (incl. pallet)
Load dimensions: 1.750 x 1.350mm
Load tolerance: offset max. 75mm
Pallet positioning: ±10mm
Maximum load: 1.500Kg
Capacity: till 80 pallets per hour (depending on project specifications)
Transportheight: 500mm-600mm (standard 600mm)
Transportspeed: 12mtr/min.
Transportspeed: 3x400V, 50Hz + Earth + “0”
Power supply: 14 KW
Diameter filmreel:  max. 1.000mm

Stretch hooder M

Technical specifications:
Pallet dimensions:1.200 x 800mm (Euro) - 1.200 x 1.000mm (Chep)
Loadheight: min. 250mm - max. 3.000mm* (incl. pallet)
Load dimensions: 1.300 x 1.100mm
Load tolerance: offset max. 50mm
Pallet positioning: ±10mm
Maximum load: 1.500Kg
Capacity: till 120 pallets per hour*
Transportheight: 500mm-600mm (standard 600mm)
Transportspeed: 12mtr./min.
Power supply: 3x400V, 50Hz + Earth + “0”
Installed power: 9,6 KW
Diameter filmreel: max. 1.000mm
Required floor space: approx. 3.050 x 4.150 x 3.750mm* (LxWxH)
(* depending on proxduct specification)

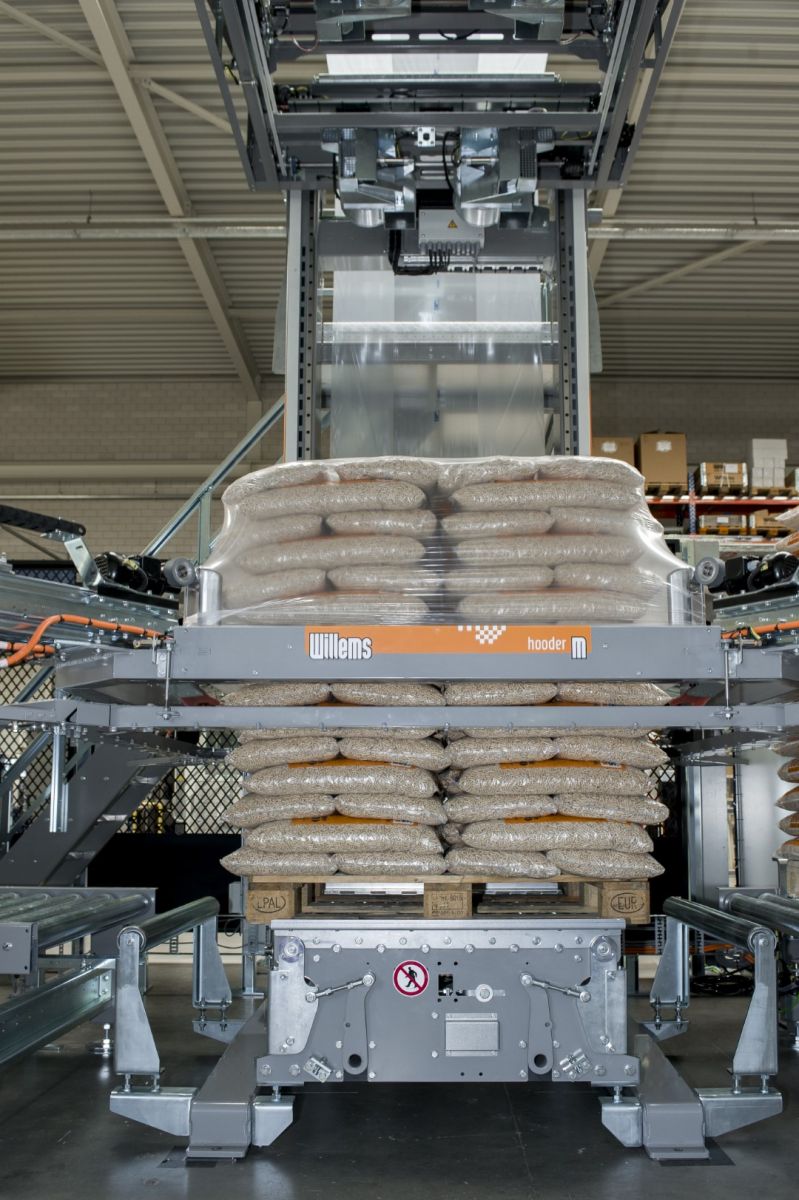

Hooder M

This video shows a Hooder model M in action.
